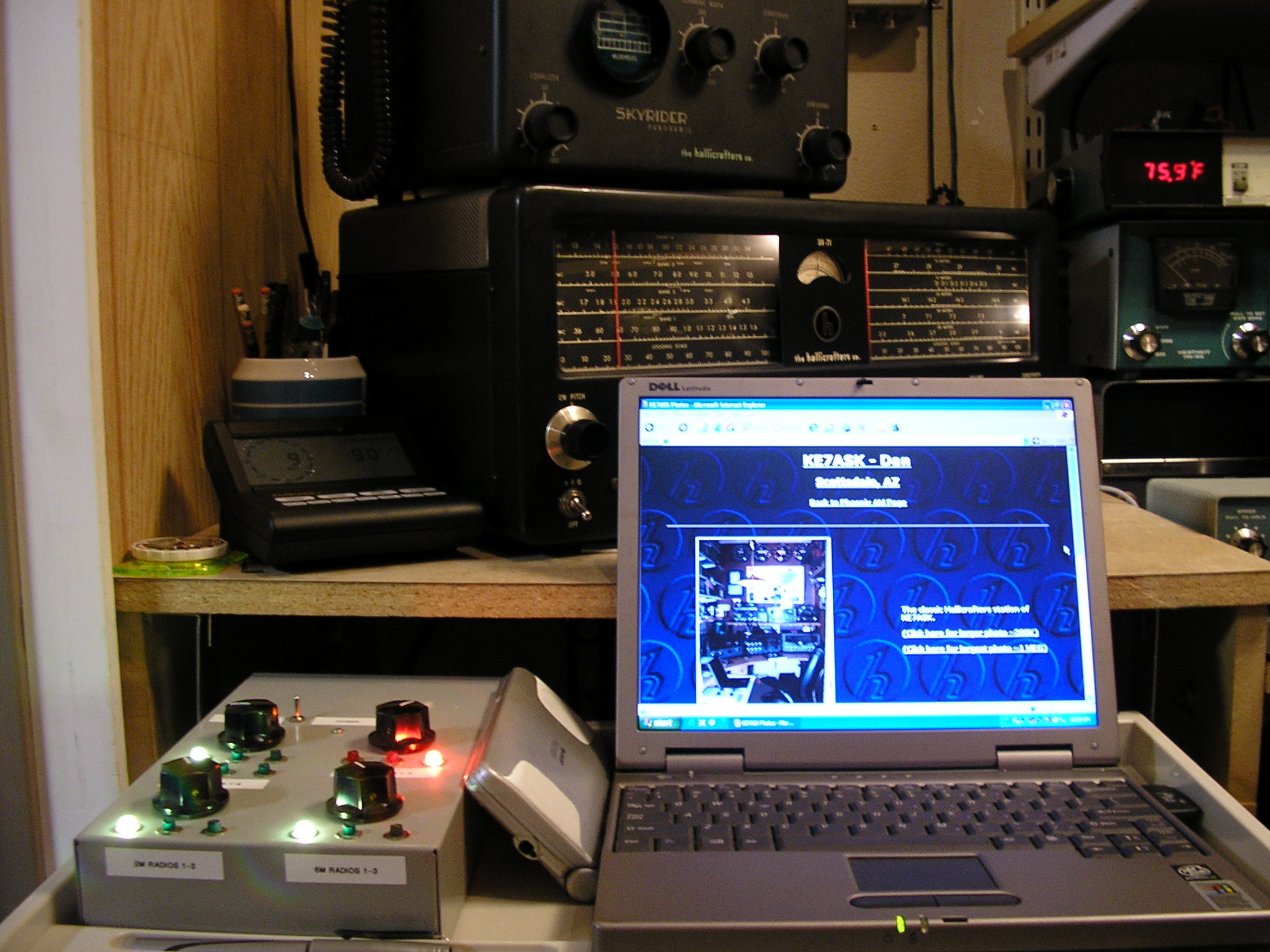

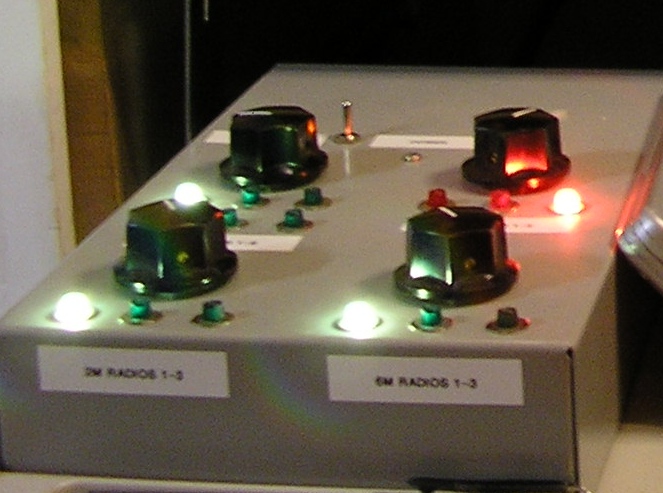

This Home-made Antenna Switch Box remotely controls a Home-made Antenna Relay Box that cleanly selects HF antennas and transmitters. |
|
|
|
|
|
|
|

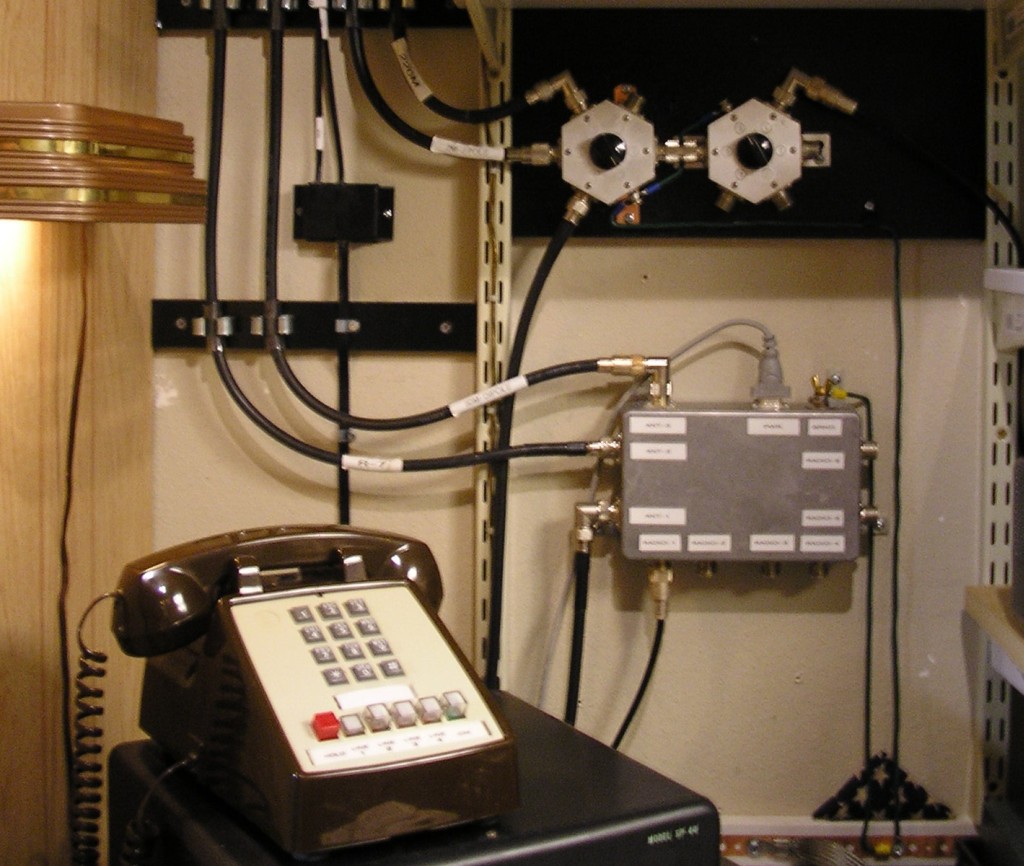

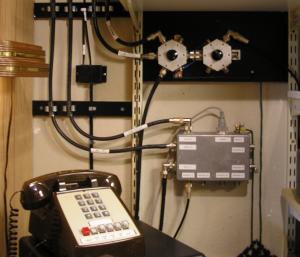

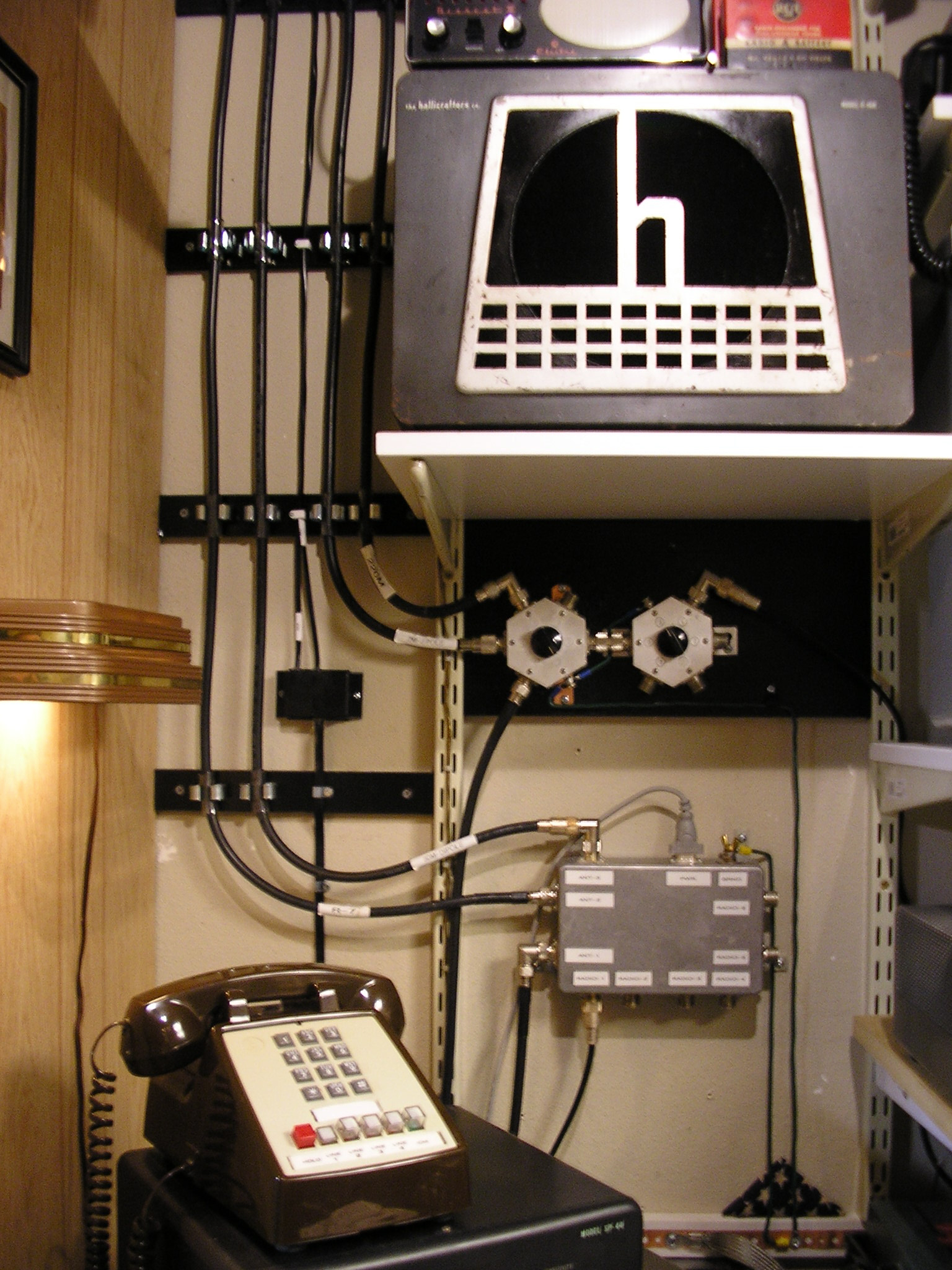

Heath HD-1234 Manual Switches (top) select VHF antennas and transmitters. The Home-made Antenna Relay Box (below) is remotely controlled by the Switch Box at the operating position and selects HF sources and antennas. The multi-line telephone carries the usual landline traffic. |
|
|
|
|
|
|
|

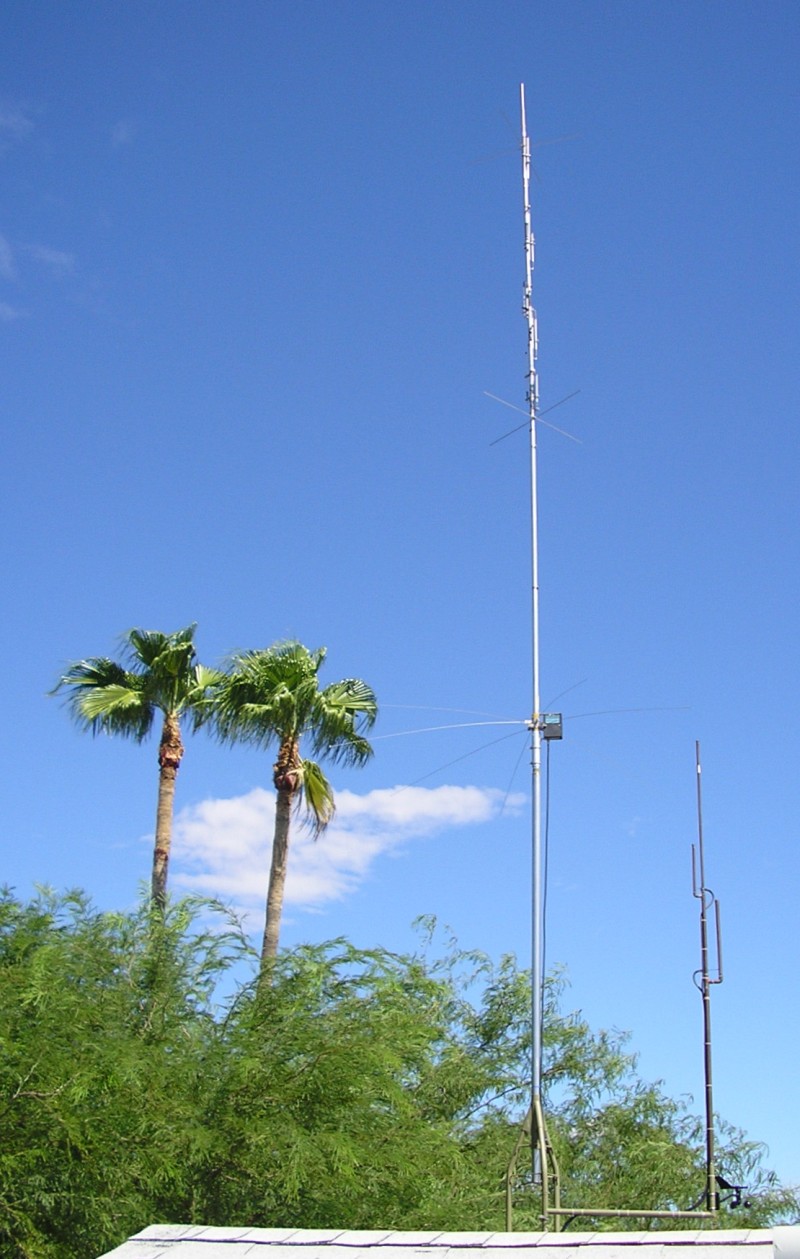

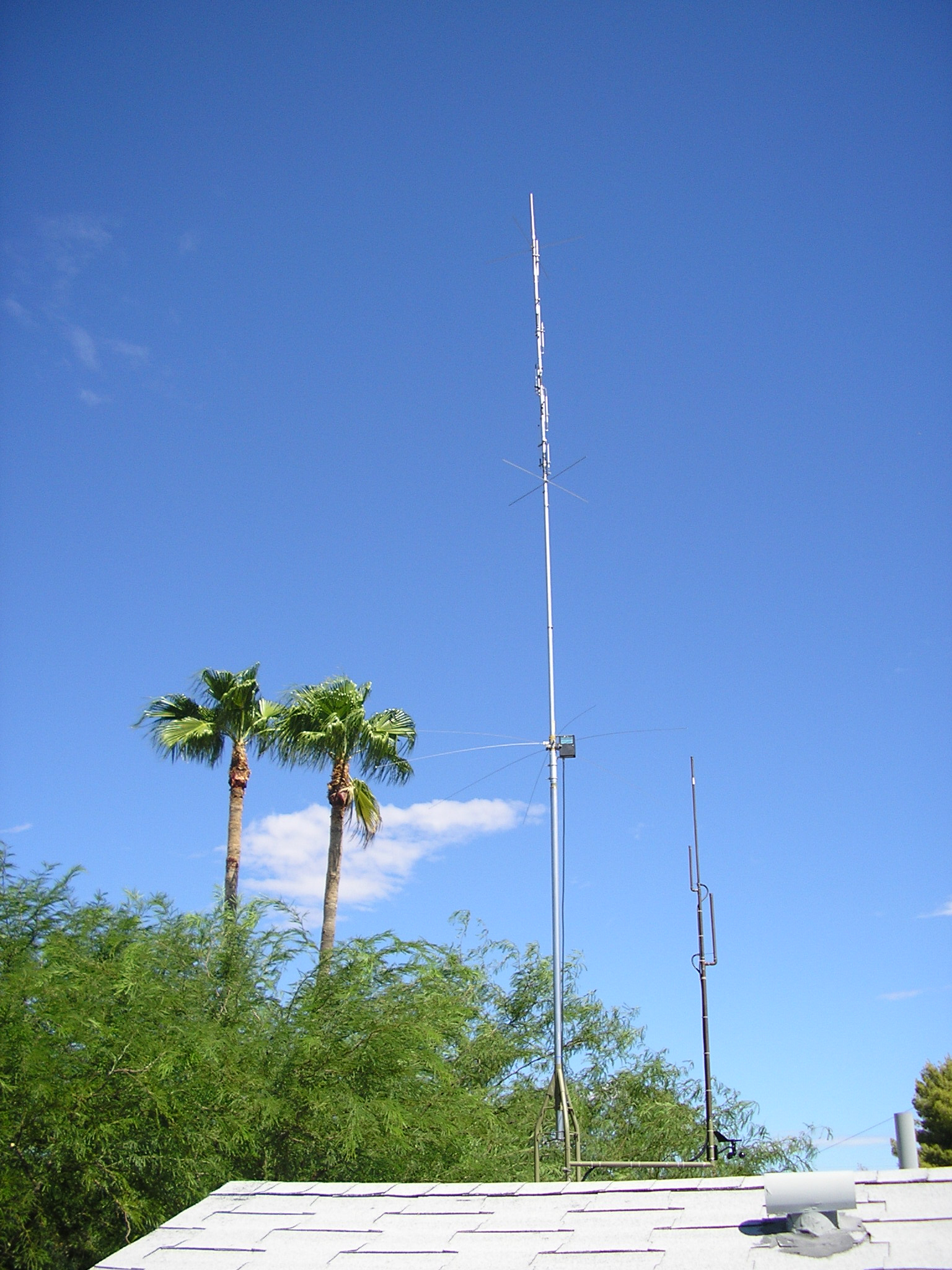

Cushcraft R-7 Vertical and dual-band 'Copper Cactus' J-Pole Antennas are used for coverage of the higher HF frequencies, and the 2-meter and 70-cm bands. Note green camouflage paint on tower and j-pole support. |
|
|
|
|
|
|
|

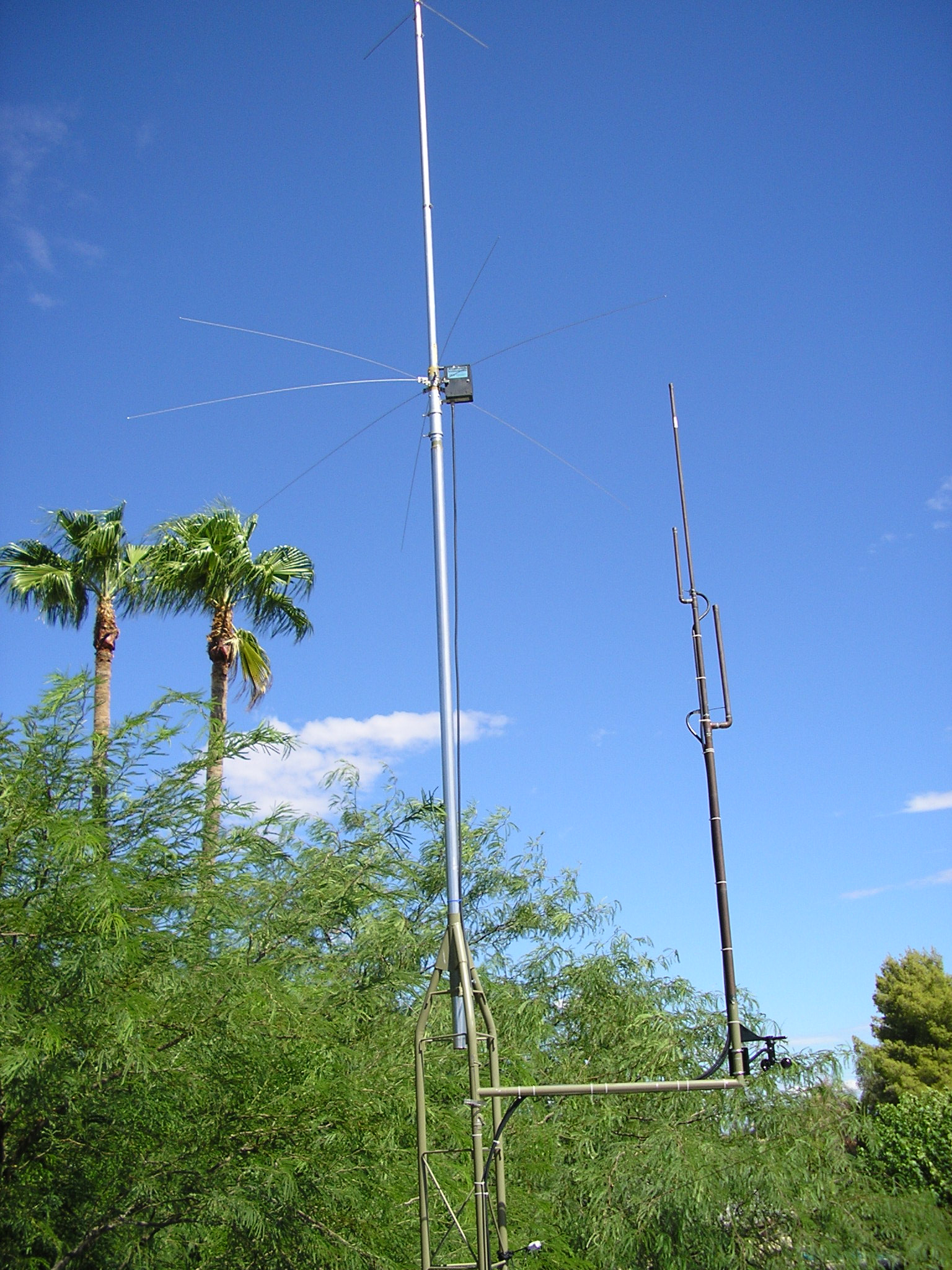

Close-up of R-7 Base and J-Pole. Green tower blends-in with surrounding foliage . |
|
|
|
|
|
|
|

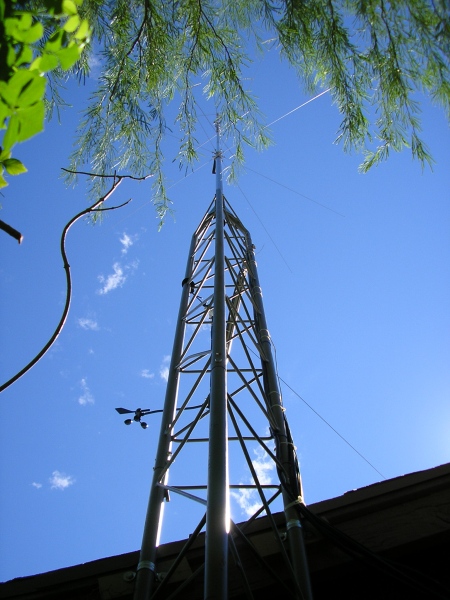

View from base of "Green Tower" |
|
|
|
|
|
|
|

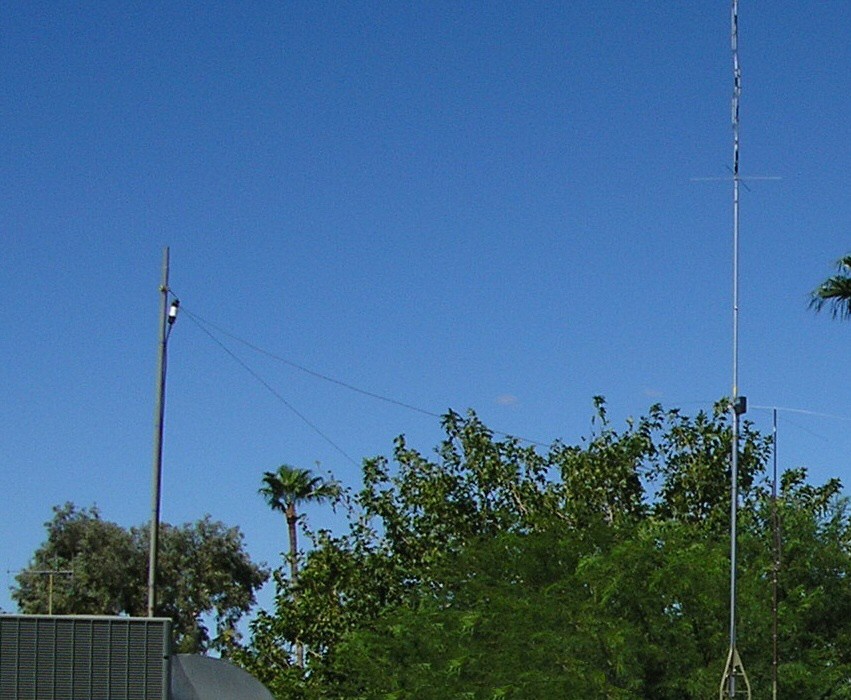

This 80-meter dipole provides coverage for KE7ASK's lowest-frequency band of operation. (Click here for larger photo ~200K)
|
|
|
|
|
|
|
|
|
|
