K7SC Arizona Station

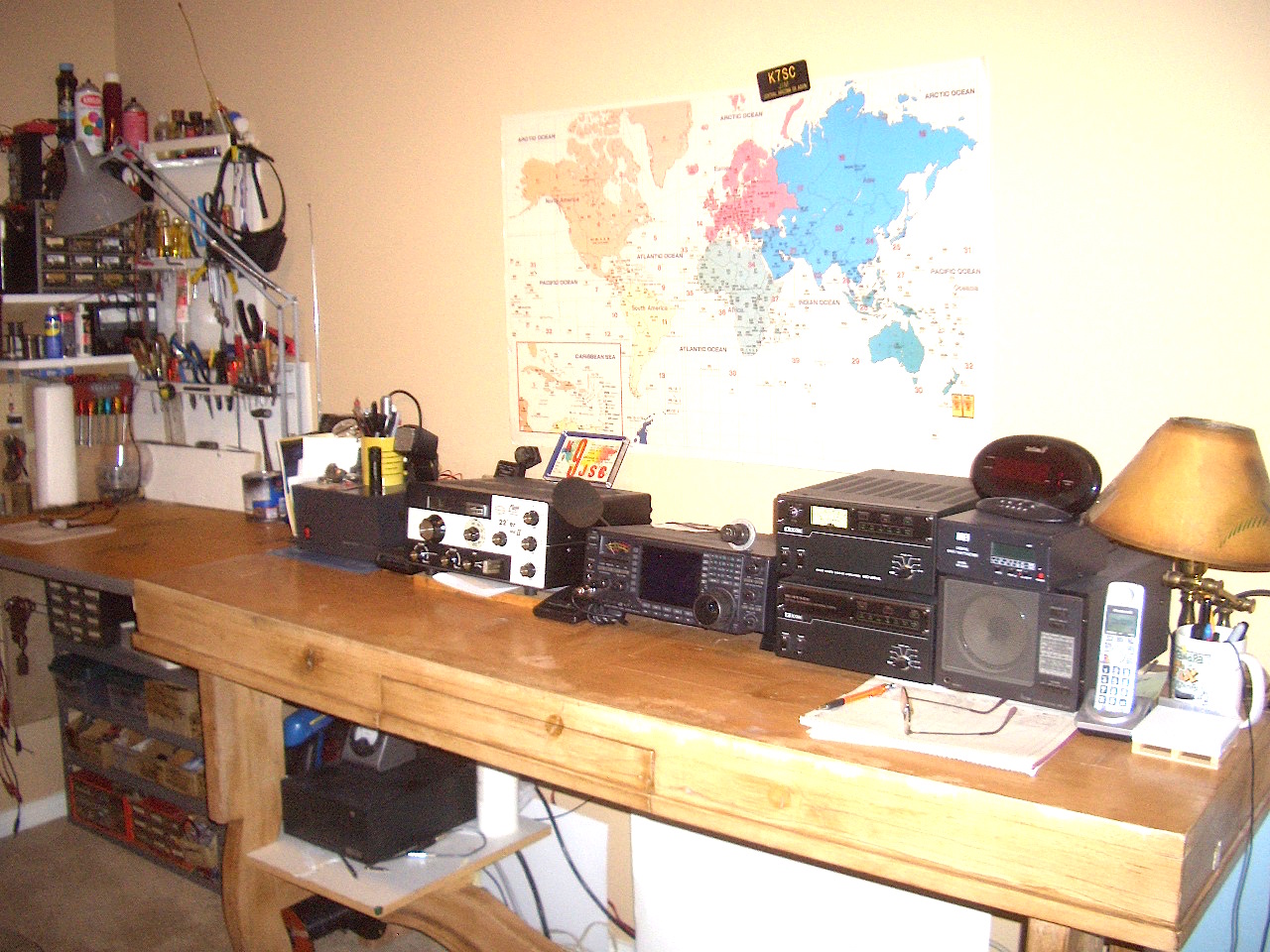

The nicely laid out station and workbench for the K7SC operation at the Arizona QTH.  HF operation is handled by an Icom IC-756pro3 driving an IC-2KL solid-state linear amplifier and an AT-500 automatic antenna tuner.  The HF antenna is a discreet vertical fed against a welded-tube corral fence.  The Clegg 22er MkII provides 25-watt AM operation into a roof-mounted vertical.

(Click here for larger photo ~460K)

  K7SC Chicago Station

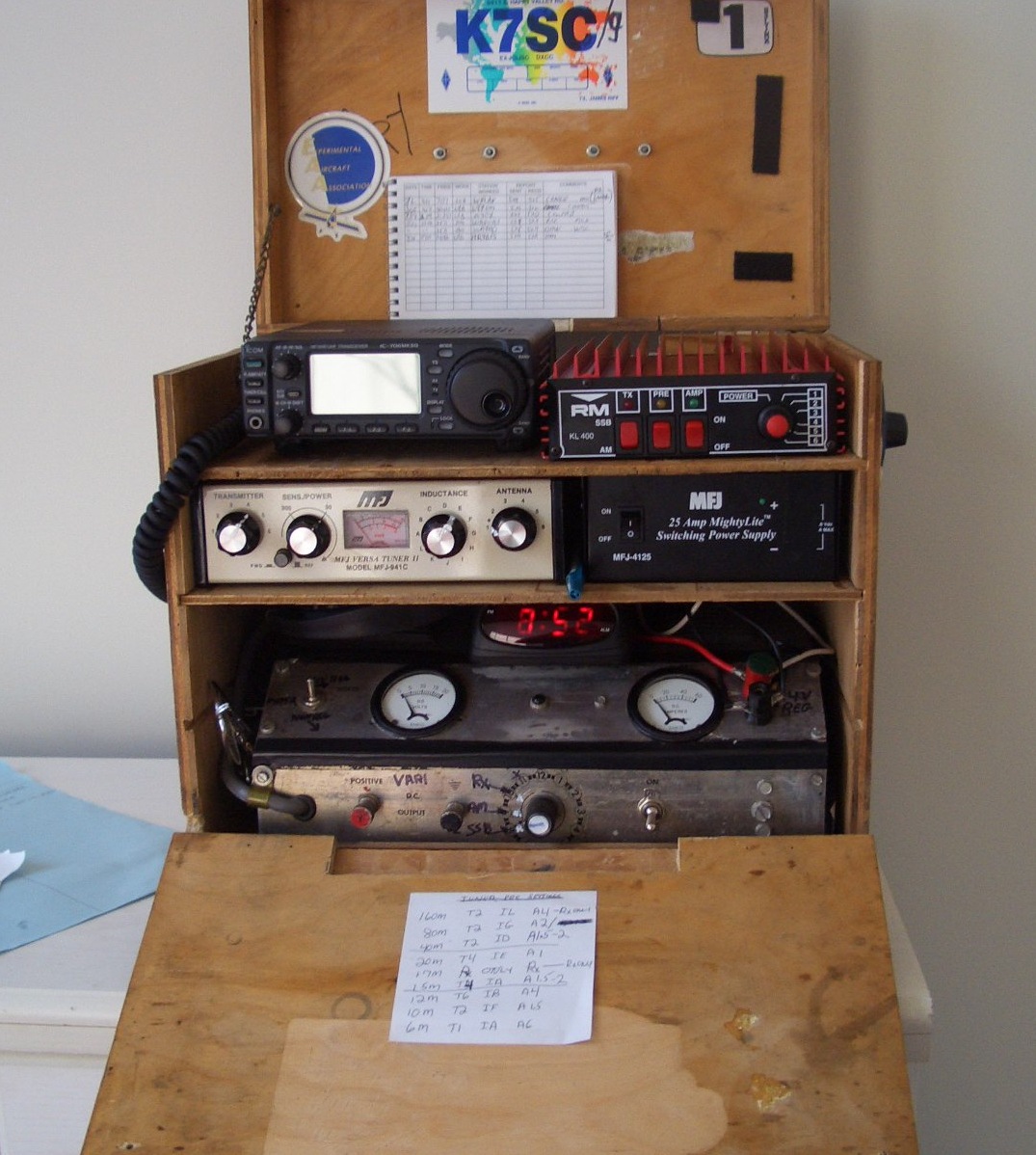

The very compact, all-band, all-mode K7SC/9 operation near Chicago --  an Icom 706 driving an RM 400-watt linear amp and an MFJ antenna tuner. The decidedly boatanchor power supply on the bottom provides 40 amps for the linear.  The antenna is a stealth dipole in the attic fed through existing CATV RG-6 cable.

(Click here for larger photo ~300K)
